Enabling I2C on Raspberry Pi

To use I2C on the Raspberry Pi, you'll first need to enable it in the Raspberry Pi's configuration settings. Follow these steps:

• Open the terminal on your Raspberry Pi and run: `sudo raspi-config`.
• Navigate to **Interfacing Options** > **I2C** and enable it.
• Reboot your Raspberry Pi for the changes to take effect.

Once I2C is enabled, you can use the `i2c-tools` package to interact with I2C devices. To install it, run:

sudo apt-get install i2c-tools

Connecting I2C Devices

Raspberry Pi has two I2C bus interfaces available. The default I2C bus is typically on the GPIO pins 3 (SDA) and 5 (SCL), but some models of Raspberry Pi have multiple I2C buses available. You can connect any I2C-enabled device to these pins, ensuring the correct voltage level and pull-up resistors are used.

• SDA (Data) - GPIO Pin 3
• SCL (Clock) - GPIO Pin 5
• GND - Ground

After connecting an I2C device, you can detect it by running:

sudo i2cdetect -y 1

This will show a map of I2C devices connected to your Raspberry Pi.

Using I2C with Python

To communicate with I2C devices, you can use Python libraries such as `smbus`. Here's an example of how to use I2C with Python to read data from an I2C sensor:

import smbus
bus = smbus.SMBus(1)  # Initialize I2C bus 1
address = 0x48        # I2C address of the device

# Reading a byte from a register (example)
data = bus.read_byte_data(address, 0x00)
print(data)


Enabling SPI on Raspberry Pi

To enable SPI on the Raspberry Pi, you need to activate it through the Raspberry Pi configuration settings:

• Open the terminal and run: `sudo raspi-config`.
• Navigate to **Interfacing Options** > **SPI** and enable it.
• Reboot your Raspberry Pi for the settings to take effect.

You can check if SPI is enabled by running:

lsmod | grep spi

SPI Pinout

SPI communication on the Raspberry Pi uses the following pins:

• CE0 (Chip Enable) - GPIO Pin 8
• CE1 (Chip Enable) - GPIO Pin 7
• CLK (Clock) - GPIO Pin 11
• MISO (Master In Slave Out) - GPIO Pin 9
• MOSI (Master Out Slave In) - GPIO Pin 10
• GND - Ground

Using SPI with Python

The `spidev` library in Python allows you to communicate with SPI devices. Here's an example to communicate with an SPI device:

import spidev

spi = spidev.SpiDev()
spi.open(0, 0)  # Open SPI bus 0, device 0
spi.max_speed_hz = 50000  # Set the clock speed

# Send and receive data
response = spi.xfer2([0x01, 0x02, 0x03])
print(response)


Timers on Raspberry Pi

The Raspberry Pi includes multiple timers for precise time management. These can be used for scheduling tasks or triggering events at regular intervals. Raspberry Pi OS provides access to these timers through libraries such as Python's `RPi.GPIO` or `pigpio`.

Timers can be used for a wide variety of applications, including:

• Generating periodic interrupts.
• Running time-sensitive tasks like data logging or event-based actions.

PWM on Raspberry Pi

PWM (Pulse Width Modulation) allows you to control the power supplied to devices like LEDs and motors. The Raspberry Pi supports PWM on several GPIO pins. Here's how to set it up:

• Use the `RPi.GPIO` library to configure a GPIO pin for PWM.
• Set the frequency of the PWM signal.
• Set the duty cycle to control the power output.

Example code to generate PWM:

import RPi.GPIO as GPIO

GPIO.setmode(GPIO.BCM)
GPIO.setup(18, GPIO.OUT)

pwm = GPIO.PWM(18, 1000)  # Pin 18, frequency 1 kHz
pwm.start(50)  # 50% duty cycle

# Change duty cycle after 5 seconds
pwm.ChangeDutyCycle(75)


Enabling Serial on Raspberry Pi

By default, the serial interface on the Raspberry Pi is disabled. To enable it:

• Open the terminal and run: `sudo raspi-config`.
• Navigate to **Interfacing Options** > **Serial** and disable the shell interface, but enable the serial port hardware.
• Reboot your Raspberry Pi.

Using Serial with Python

The `pyserial` library is commonly used for serial communication in Python. To install it, run:

sudo apt-get install python3-serial

Here's an example of using serial communication:

import serial

ser = serial.Serial('/dev/ttyAMA0', 9600)  # Open serial port at 9600 baud rate

# Write to serial
ser.write(b'Hello, Raspberry Pi!')

# Read from serial
data = ser.readline()
print(data)


GPIO (General Purpose Input/Output) on Raspberry Pi

The GPIO pins on the Raspberry Pi provide a versatile interface for connecting sensors, actuators, and other external components. With up to 40 GPIO pins available on various models, you can interact with the physical world, controlling LEDs, motors, buttons, and more.

The GPIO pins are connected to the Broadcom SoC (System on Chip), and their functionality can be configured in software. They can be used for digital input, digital output, PWM (Pulse Width Modulation), and communication protocols like I2C and SPI.

Configuring GPIO Pins

• Use the RPi.GPIOPython library to configure GPIO pins for input or output.
• Use the gpiozeroPython library for higher-level control, such as controlling LEDs or buttons with minimal code.

Example Code to Blink an LED

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
GPIO.setup(17, GPIO.OUT)

while True:
    GPIO.output(17, GPIO.HIGH)
    time.sleep(1)
    GPIO.output(17, GPIO.LOW)
    time.sleep(1)

GPIO Interrupts on Raspberry Pi

Interrupts are a powerful feature of Raspberry Pi's GPIO (General Purpose Input/Output) pins, allowing the Pi to react to events such as changes in input signals. Interrupts are used for efficient event handling, enabling the Pi to perform actions only when needed, rather than constantly polling input pins. In this guide, we will explore how to use GPIO interrupts on a Raspberry Pi, including setup, use cases, and code examples.

What are GPIO Interrupts?

A GPIO interrupt is an event that occurs when the state of a GPIO pin changes. When the interrupt condition is met (e.g., a rising edge, falling edge, or change in state), the Raspberry Pi triggers an interrupt service routine (ISR) to handle the event. This allows the system to react quickly to external stimuli, without needing to waste processor time checking the pin state constantly.

GPIO Interrupt Types

Raspberry Pi supports several types of GPIO interrupts:

• Rising Edge: Triggered when the GPIO pin changes from LOW to HIGH.
• Falling Edge: Triggered when the GPIO pin changes from HIGH to LOW.
• Both Edges: Triggered on both rising and falling edges of the signal (i.e., every time the pin changes state).
• Level Change: Triggered when the GPIO pin changes to either a HIGH or LOW level (this is not supported natively by the Raspberry Pi GPIO library but can be handled via software).

Setting Up GPIO Interrupts on Raspberry Pi

To use GPIO interrupts, you must configure the GPIO pin in your code and specify the type of interrupt you want to listen for. You will then write an interrupt service routine (ISR) that will be called when the interrupt is triggered.

Step-by-Step Setup

1. First, ensure that you have the WiringPilibrary installed, or use the RPi.GPIOlibrary (depending on your preferences and Raspberry Pi model).
2. In your Python or C program, configure the GPIO pin as an input pin.
3. Set up the interrupt on the input pin to listen for a rising edge, falling edge, or both edges.
4. Write the interrupt handler function (ISR) to handle the event triggered by the interrupt.
5. Enable the interrupt to listen for changes in the GPIO pin state.

Python Example Code

Here is an example using the RPi.GPIOlibrary in Python to set up a GPIO interrupt on pin 17 for a rising edge trigger:

import RPi.GPIO as GPIO
import time

# Set the GPIO mode
GPIO.setmode(GPIO.BCM)

# Define the pin to listen for interrupts
pin = 17

# Setup the pin as an input with a pull-up resistor
GPIO.setup(pin, GPIO.IN, pull_up_down=GPIO.PUD_UP)

# Define the callback function that will be triggered by the interrupt
def gpio_callback(channel):
    print("Interrupt detected on GPIO pin", channel)

# Add an interrupt to GPIO pin 17, looking for a rising edge
GPIO.add_event_detect(pin, GPIO.RISING, callback=gpio_callback)

# Keep the program running to listen for interrupts
try:
    while True:
        time.sleep(1)
except KeyboardInterrupt:
    print("Program terminated")
finally:
    GPIO.cleanup()


In this example, when the GPIO pin 17 detects a rising edge (i.e., when it changes from LOW to HIGH), the interrupt service routine gpio_callbackis called, printing a message to the terminal.

Using Interrupts for Debouncing

Debouncing is a technique used to ensure that a signal is stable and doesn't generate multiple interrupts from a single event. Mechanical switches and buttons can generate noisy signals, causing multiple interrupts to be triggered. You can implement a debounce function in your interrupt callback to ensure that only one event is detected within a short period.

Debouncing Example

Here is an example of a debounced interrupt for a button press using the RPi.GPIOlibrary in Python:

import RPi.GPIO as GPIO
import time

# Set the GPIO mode
GPIO.setmode(GPIO.BCM)

# Define the pin for the button
button_pin = 17

# Setup the button pin as an input with a pull-up resistor
GPIO.setup(button_pin, GPIO.IN, pull_up_down=GPIO.PUD_UP)

# Define a debounce delay (in seconds)
debounce_delay = 0.2

# Define the callback function with debounce
def gpio_callback(channel):
    print("Button pressed!")
    time.sleep(debounce_delay)

# Add an event detection on the button pin with a falling edge (button press)
GPIO.add_event_detect(button_pin, GPIO.FALLING, callback=gpio_callback, bouncetime=int(debounce_delay * 1000))

# Keep the program running to listen for interrupts
try:
    while True:
        time.sleep(1)
except KeyboardInterrupt:
    print("Program terminated")
finally:
    GPIO.cleanup()


In this example, the bouncetimeparameter is used to ignore any additional interrupts that occur within 200 milliseconds of the first one, effectively debouncing the button press.

Using Multiple GPIO Interrupts

You can set up interrupts on multiple GPIO pins simultaneously. This is useful for applications that need to respond to events from several sources, such as buttons, sensors, or other inputs.

Example for Multiple GPIO Interrupts

Here's an example where we set up interrupts on two GPIO pins (17 and 18) for a rising edge trigger:

import RPi.GPIO as GPIO
import time

# Set the GPIO mode
GPIO.setmode(GPIO.BCM)

# Define pins for input
pin1 = 17
pin2 = 18

# Setup the pins as inputs with pull-up resistors
GPIO.setup(pin1, GPIO.IN, pull_up_down=GPIO.PUD_UP)
GPIO.setup(pin2, GPIO.IN, pull_up_down=GPIO.PUD_UP)

# Define the callback function for pin interrupts
def gpio_callback(channel):
    print(f"Interrupt detected on GPIO pin {channel}")

# Add events for multiple pins
GPIO.add_event_detect(pin1, GPIO.RISING, callback=gpio_callback)
GPIO.add_event_detect(pin2, GPIO.RISING, callback=gpio_callback)

# Keep the program running to listen for interrupts
try:
    while True:
        time.sleep(1)
except KeyboardInterrupt:
    print("Program terminated")
finally:
    GPIO.cleanup()


In this example, both GPIO pins (17 and 18) are configured to trigger an interrupt on a rising edge, and the callback function is triggered for each pin when the event occurs.

GPIO Interrupt Limitations

While GPIO interrupts are a powerful tool, there are some limitations:

• Interrupt Handling Time: Interrupts in Raspberry Pi are managed by the CPU and can be delayed depending on the load on the system.
• Number of Interrupts: Raspberry Pi models have a limited number of GPIO pins that support hardware interrupts. You may need to use software polling for additional GPIOs.
• Timing Accuracy: Timing in GPIO interrupts may not be as precise as in dedicated real-time systems. For critical real-time applications, consider using an external microcontroller or dedicated hardware.

Conclusion

GPIO interrupts are an essential tool for handling real-time events on a Raspberry Pi, allowing it to respond quickly and efficiently to changes in input signals. With proper setup, interrupts can be used to create responsive systems for a variety of applications, such as monitoring sensors, buttons, or communication signals.

Raspberry Pi Models with Built-in Wi-Fi

Several Raspberry Pi models come with integrated Wi-Fi, simplifying projects that need wireless networking without additional hardware. These models include:

• Raspberry Pi 3 Model B/B+
• Raspberry Pi 4 Model B
• Raspberry Pi Zero W
• Raspberry Pi Zero 2 W

These models feature **Wi-Fi 802.11n** (Wi-Fi 4) with a strong and reliable connection for a variety of projects. The **Raspberry Pi 4** supports **dual-band 2.4GHz and 5GHz** Wi-Fi for faster speeds and better performance in congested environments.

Enabling and Using Wi-Fi on Raspberry Pi

Wi-Fi on Raspberry Pi boards is easy to configure and use. It is supported by the **wpa_supplicant** tool, which handles wireless connections on Linux-based systems like Raspberry Pi OS.

Getting Started with Wi-Fi

To enable Wi-Fi on your Raspberry Pi, follow these steps:

• Ensure that your Raspberry Pi is running a compatible OS like Raspberry Pi OS.
• Configure Wi-Fi using the GUI (for desktop versions) or via the terminal using `raspi-config` (for headless setups).
• If you're setting up headlessly, configure the Wi-Fi network details by editing the `wpa_supplicant.conf` file.

Wi-Fi Use Cases

• Connecting to the internet for web browsing or server access.
• Running headless projects where the Raspberry Pi is controlled remotely via SSH or VNC.
• Building IoT systems that need internet access to send or receive data.
• Setting up wireless hotspots or wireless printers.

Using USB Wi-Fi Adapters

If you are using a Raspberry Pi model that does not come with built-in Wi-Fi (such as the Raspberry Pi 2 or earlier models), you can add Wi-Fi functionality by using a compatible USB Wi-Fi adapter. These adapters work well with Raspberry Pi OS and are widely available.

Raspberry Pi Models with Built-in Bluetooth

Several Raspberry Pi models include Bluetooth functionality out of the box. These models are ideal for projects that require Bluetooth communication without the need for additional hardware:

• Raspberry Pi 3 Model B/B+
• Raspberry Pi 4 Model B
• Raspberry Pi Zero W
• Raspberry Pi Zero 2 W

These models are equipped with Bluetooth 4.2 (except for the Raspberry Pi 3 B+, which supports Bluetooth 4.2 and Bluetooth Low Energy). The built-in Bluetooth allows for easy connection to wireless peripherals such as headphones, keyboards, mice, and sensors.

Enabling and Using Bluetooth on Raspberry Pi

Bluetooth on Raspberry Pi boards is supported by the BlueZ stack, which is the official Linux Bluetooth protocol stack. It allows the Pi to communicate with Bluetooth devices using tools such as `bluetoothctl`, a command-line utility for managing Bluetooth devices.

Getting Started with Bluetooth

To enable Bluetooth on your Raspberry Pi, follow these steps:

• Ensure Bluetooth is enabled in the Raspberry Pi configuration settings.
• Use `bluetoothctl` to interact with and pair Bluetooth devices.
• Install necessary utilities like `bluez` and `pi-bluetooth` for advanced functionality.

Common Bluetooth Use Cases

• Connecting Bluetooth keyboards and mice for headless operation.
• Using Bluetooth speakers or audio devices with Raspberry Pi media projects.
• Interfacing with Bluetooth sensors or devices for IoT projects.

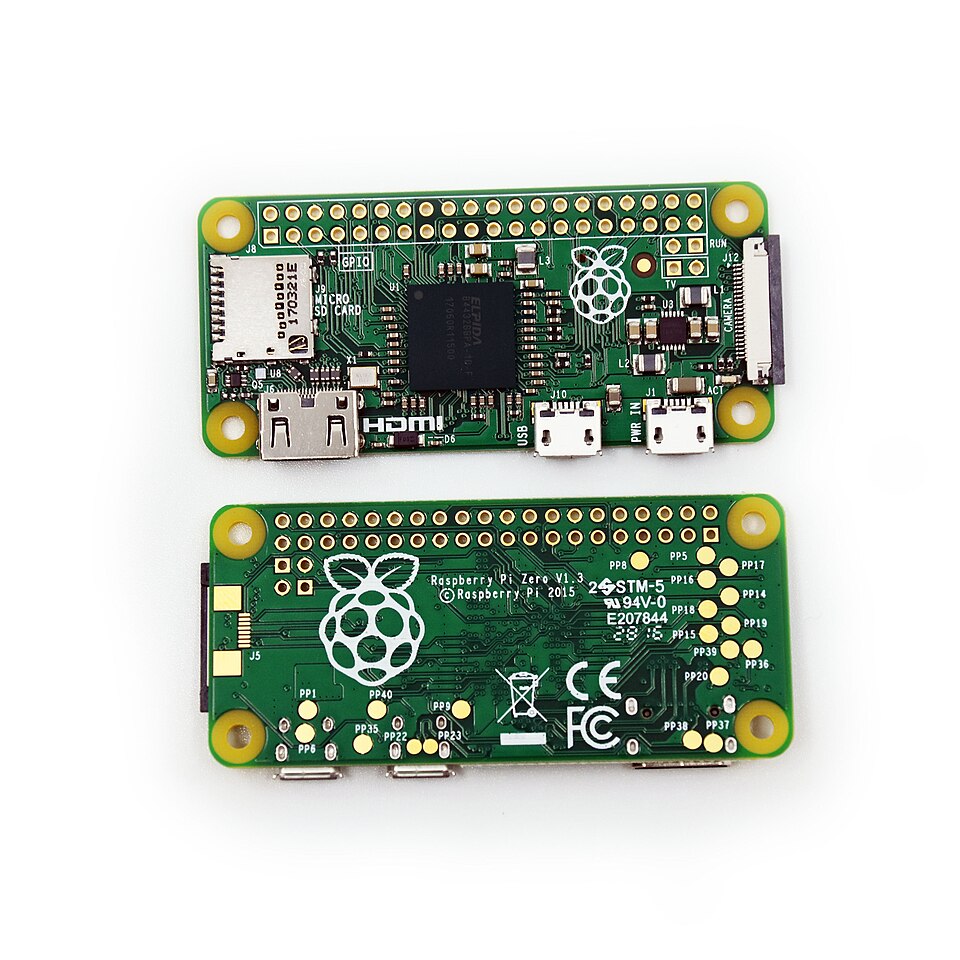

Using Bluetooth with Raspberry Pi Zero and Zero W

The Raspberry Pi Zero W and Zero 2 W come with Bluetooth 4.2 integrated into the board. These models are perfect for compact, low-power projects that require Bluetooth connectivity, such as small wireless IoT sensors, home automation devices, and Bluetooth-based remote control systems.

Using USB Bluetooth Adapters

If you're working with a Raspberry Pi model that doesn't come with built-in Bluetooth (like the Raspberry Pi 2 or earlier models), you can easily add Bluetooth functionality by using a USB Bluetooth adapter. These adapters work with the BlueZ stack and provide the same functionality as built-in Bluetooth.

USB OTG and Gadget Mode on Raspberry Pi

USB On-The-Go (OTG) and Gadget Mode allow Raspberry Pi boards to act as USB devices, enabling them to function as network adapters, mass storage devices, serial devices, and even multiple devices at once. This is particularly useful for Raspberry Pi models that have USB OTG support, such as the Pi Zero and Pi Zero 2, but it also works on other Pi models under specific configurations. With proper configuration, Raspberry Pi can serve as multiple gadgets at the same time, offering versatile capabilities for embedded systems.

By enabling USB OTG and Gadget Mode, you can turn your Raspberry Pi into a USB device such as:

• USB Network Device: Transform your Pi into a network device, allowing it to be used as a network interface between a PC and the Raspberry Pi.
• Mass Storage Device: Use your Pi to emulate a USB disk drive, allowing files to be transferred between your Pi and a host PC.
• Serial Device: Use the Pi as a serial device for communication with a host computer, similar to a USB-to-serial adapter.
• Audio Device: Raspberry Pi can also emulate an audio device, such as a USB sound card.

Models That Support USB OTG and Gadget Mode

USB OTG and Gadget Mode are available on the following Raspberry Pi models:

• Raspberry Pi Zero: The Pi Zero has a micro-USB OTG port, making it ideal for USB device functionality.
• Raspberry Pi Zero W: Similar to the Pi Zero, the Pi Zero W also supports USB OTG and is equipped with built-in Wi-Fi.
• Raspberry Pi Zero 2 W: The Pi Zero 2 W, with more processing power, retains USB OTG and can also be used for gadget mode applications.
• Raspberry Pi 4 (via USB-C OTG mode): While the Pi 4 doesn't have a native OTG port, it can function in USB OTG mode via the USB-C port with proper configuration.
• Raspberry Pi 400: The Pi 400 can also be used in USB gadget mode, but only via the USB-C port with the correct configuration.

Setting Up USB Gadget Mode for Multiple Gadgets

One of the powerful features of USB OTG and Gadget Mode is the ability to enable multiple USB gadgets at the same time. This allows your Raspberry Pi to serve as several devices simultaneously, such as a network adapter, mass storage device, and serial port, all over a single USB connection.

1. Enabling Gadget Mode for Multiple Gadgets

To enable multiple gadgets simultaneously, you'll need to configure the Raspberry Pi to load multiple gadget modules. The following instructions describe how to enable USB OTG mode and set up different gadgets:

Step-by-Step Setup

1. Insert your Raspberry Pi SD card into your computer and navigate to the

   /boot

   directory.
2. Edit the

   /boot/config.txt

   file to enable OTG mode:

   dtoverlay=dwc2,dr_mode=peripheral

3. Edit the

   /boot/cmdline.txt

   file to load the required gadget modules. To enable multiple gadgets, include the following line (make sure the entire line is a single line of text):

   modules-load=dwc2,g_ether,g_mass_storage,g_serial

4. If you want to use an audio device, you can load the audio gadget module:

   modules-load=dwc2,g_audio

5. Reboot the Raspberry Pi.

After rebooting, your Raspberry Pi will be capable of operating as multiple USB gadgets simultaneously. You can now connect it to a host PC, and it will appear as a network device, mass storage device, serial device, and optionally an audio device, all at once.

2. Configuring Each Gadget

Each gadget requires specific configuration:

USB Network Device (Ethernet over USB)

• To configure your Raspberry Pi as a USB network device (Ethernet over USB), ensure that the

  g_ether

  module is loaded as shown in the previous steps. The Pi will appear as a network interface on the host computer, allowing you to use SSH or transfer files over a USB connection.

USB Mass Storage Device

• For mass storage, specify the file or partition to be emulated as a USB drive by editing

  /boot/cmdline.txt

  and adding the

  g_mass_storage

  module. Example:

  g_mass_storage.file=/path/to/your/disk.img

USB Serial Device

• For serial communication, ensure the

  g_serial

  module is loaded. This will allow the Raspberry Pi to appear as a serial device (e.g., a USB-to-serial adapter) on the host computer.

USB Audio Device

• To use your Raspberry Pi as a USB audio device, load the

  g_audio

  module. This will make the Pi appear as a USB sound card that can be used by the host computer.

3. Using the Multiple Gadgets

After configuring the Raspberry Pi, you can connect it to a host computer. The Pi will appear as multiple USB devices, and you can interact with each of them separately:

• Network Device: You can establish a network connection using SSH or other network protocols.
• Mass Storage: You can transfer files between the host computer and the Raspberry Pi by accessing the emulated USB drive.
• Serial Device: You can open a terminal on the host computer to interact with the Raspberry Pi via serial communication.
• Audio Device: If configured, the Pi will be recognized as a USB audio device, and you can use it for audio input/output.

Additional Notes

Using multiple USB gadgets at the same time is a powerful feature, but it requires sufficient processing power to handle multiple simultaneous connections. Raspberry Pi Zero models are ideal for this setup, while Raspberry Pi 4 and Pi 400 offer even more power for complex gadget configurations.

Keep in mind that depending on the operating system of the host computer, you may need to install specific drivers or software to support the various gadgets (network device drivers, serial drivers, or audio software).

USB gadget mode is an excellent tool for embedded and low-cost projects where multiple functions are needed on a single device. It enables Raspberry Pi to operate as several USB peripherals at once, all over a single USB connection, significantly expanding its capabilities.

Installing Operating Systems on Raspberry Pi SD Cards

Raspberry Pi computers support a wide range of operating systems, including Linux distributions, Android, Ultibo, and various real-time operating systems (RTOS). This page covers the installation of these OSes onto SD cards for Raspberry Pi, with detailed instructions for Windows and Linux hosts. It also provides detailed information about Ultibo, a bare-metal operating system that allows you to write programs in Pascal directly on Raspberry Pi.

Installing Linux OS on Raspberry Pi

Linux is the most popular operating system family for Raspberry Pi devices. Raspberry Pi OS (formerly Raspbian) is the official OS, but there are many other distributions like Ubuntu, Manjaro, and others. Below are the instructions for installing Linux OS onto the Raspberry Pi SD card using either a Windows or Linux host.

Windows Host

1. Download the Raspberry Pi Imager: Go to the official Raspberry Pi website and download the Raspberry Pi Imager for Windows.
2. Install the Imager: Run the downloaded installer and follow the on-screen instructions to install the Raspberry Pi Imager on your Windows computer.
3. Insert the SD Card: Insert the SD card (at least 8GB recommended) into your Windows PC using an SD card reader.
4. Open Raspberry Pi Imager: Launch the Raspberry Pi Imager application.
5. Select the OS: In the Imager, select the desired OS from the list of available operating systems, such as Raspberry Pi OS or Ubuntu.
6. Select the SD Card: Choose your SD card from the list of available devices.
7. Write the OS: Click the "Write" button to begin writing the OS to the SD card. The process may take several minutes.
8. Finish and Eject: Once the writing process is complete, safely eject the SD card from your PC and insert it into your Raspberry Pi.

Linux Host

1. Install Raspberry Pi Imager: On a Linux system, you can install Raspberry Pi Imager by running the following command in your terminal:

   isudo apt install rpi-imager

2. Insert the SD Card: Insert the SD card (at least 8GB recommended) into your Linux PC using an SD card reader.
3. Launch Raspberry Pi Imager: Once installed, run the following command to launch the Imager:

   irpi-imager

4. Select the OS: Choose the operating system you want to install on the SD card, such as Raspberry Pi OS, Ubuntu, or others.
5. Select the SD Card: Choose the SD card as the target device for the installation.
6. Write the OS: Click "Write" to start installing the OS on the SD card. The process may take several minutes.
7. Finish and Eject: Once complete, safely eject the SD card and insert it into the Raspberry Pi.

Installing Android on Raspberry Pi

Android is another operating system available for Raspberry Pi, though it may not be as commonly used as Linux-based OSes. Android for Raspberry Pi allows users to run Android apps and use the Raspberry Pi as an Android device. Here's how to install Android on your Raspberry Pi SD card:

Using an Image File (Windows and Linux)

1. Download an Android Image: Download a compatible Android image from sources like KonstaKANG or AndroidPi.
2. Write the Image to SD Card: Use a tool like Balena Etcher (available for both Windows and Linux) to write the downloaded Android image to the SD card.
3. Insert the SD Card: Once the image is written, safely eject the SD card from your computer and insert it into the Raspberry Pi.
4. Boot the Raspberry Pi: Power up the Raspberry Pi. The device should boot into Android, and you can set it up as you would on any Android device.

Installing Ultibo Programs on Raspberry Pi

Ultibo is a unique operating system designed for bare-metal programming on the Raspberry Pi. It allows developers to write low-level programs in Pascal, offering fine control over hardware without the overhead of a full operating system like Linux. The Ultibo Pascal IDE provides an efficient development environment that allows you to write programs and directly run them on Raspberry Pi without the need for an operating system.

Ultibo Pascal IDE Overview

The Ultibo Pascal IDE is a cross-platform integrated development environment designed specifically for Ultibo. It is tailored for bare-metal development on the Raspberry Pi, which means your code interacts directly with the hardware without an operating system in between. The Ultibo IDE supports creating programs in Pascal and compiling them for various Raspberry Pi models.

Key Features of Ultibo Pascal IDE:

• Cross-platform Support: Ultibo Pascal IDE works on Windows, macOS, and Linux, allowing you to develop programs for Raspberry Pi on your host machine.
• Easy Setup: The IDE provides a simple setup process for both beginner and advanced users, making it easy to start developing bare-metal applications.
• Access to Hardware: Since Ultibo operates without a full OS, you have complete control over the Raspberry Pi’s hardware, allowing you to interact with GPIO pins, peripherals, and other system components directly.
• Real-Time Performance: Ultibo provides real-time capabilities, enabling developers to write code for applications that require precise timing, such as embedded systems, robotics, and IoT devices.
• Direct Memory Access: With Ultibo, you can access memory directly, allowing you to write highly optimized code for performance-critical applications.

Steps to Install Ultibo on Raspberry Pi

1. Download Ultibo Image: Go to the official Ultibo website and download the latest Ultibo image compatible with your Raspberry Pi model.
2. Write the Image to SD Card: Use Balena Etcher or Raspberry Pi Imager to write the Ultibo image onto the SD card.
3. Install Ultibo IDE: Download and install the Ultibo Pascal IDE on your host computer. The IDE is available for Windows, macOS, and Linux.
4. Develop and Compile Programs: Using the Ultibo Pascal IDE, develop your program in Pascal. Once the code is written, compile it into a binary file that can be executed directly on the Raspberry Pi.
5. Load Ultibo Programs: Transfer the compiled binary to the SD card and insert it into your Raspberry Pi. Upon booting, the Raspberry Pi will execute the program without the need for an operating system to manage the hardware.
6. Run on Raspberry Pi: Once the SD card is inserted, power up the Raspberry Pi. Your program will run directly on the hardware, and you’ll be able to interact with GPIO pins, peripherals, and sensors.

Examples of Ultibo Projects

Ultibo can be used for a variety of applications where low-level access to hardware is necessary. Here are a few examples:

• GPIO Control: Build systems that control or monitor sensors, actuators, and other hardware using the GPIO pins.
• Embedded Systems: Write software for real-time applications, such as robotics or automation systems, where precise timing is crucial.
• Real-Time Data Processing: Use Ultibo for processing real-time data from sensors or other inputs, with immediate output actions.
• Display Drivers: Write custom drivers for LCD, OLED, and other displays, directly interacting with the hardware.

Other Non-Linux OS: Real-Time Operating Systems (RTOS)

Several RTOS options are available for Raspberry Pi. These operating systems provide real-time performance, which is ideal for applications that require precise timing, fast responses, and minimal delays. Some of the most popular RTOS options for Raspberry Pi include:

• FreeRTOS: A popular RTOS that is used for real-time embedded applications. It supports Raspberry Pi and is useful for microcontroller-like tasks and low-latency operations.
• ChibiOS: Another real-time operating system that supports the Raspberry Pi. It’s designed to be lightweight and has a small footprint, making it suitable for embedded systems.
• RIOT OS: A low-power RTOS designed for IoT applications. It supports Raspberry Pi and allows developers to write real-time applications for IoT devices.
