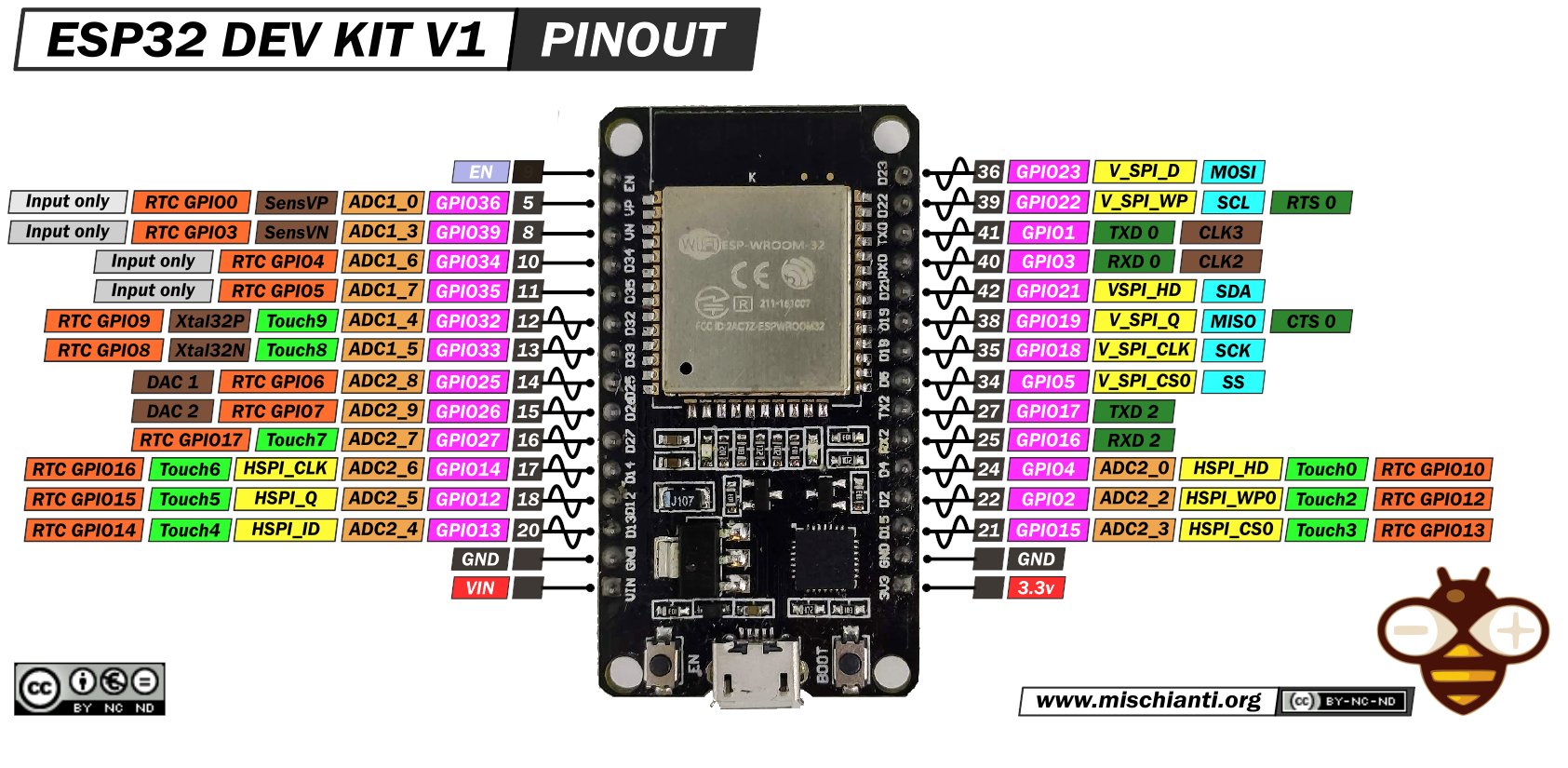

// ADC Example to Read Voltage
const int analogPin = 34;  // ADC1 Channel 6 (GPIO 34)
int adcValue = 0;          // Variable to store ADC value
float voltage = 0.0;       // Variable to store calculated voltage

void setup() {
    Serial.begin(115200);  // Initialize serial communication
    analogReadResolution(12);  // Set ADC resolution to 12 bits
}

void loop() {
    adcValue = analogRead(analogPin);   // Read the analog value from the pin
    voltage = (adcValue / 4095.0) * 3.3;  // Calculate the voltage
    Serial.print("ADC Value: ");
    Serial.print(adcValue);
    Serial.print(" | Voltage: ");
    Serial.println(voltage);
    delay(1000);  // Wait for 1 second before reading again
}

// ADC with Attenuation to read higher voltages
const int analogPin = 33;  // ADC1 Channel 5 (GPIO 33)
int adcValue = 0;
float voltage = 0.0;

void setup() {
    Serial.begin(115200);
    analogReadResolution(12);   // Set ADC to 12-bit resolution
    analogSetPinAttenuation(analogPin, ADC_11db);  // Set attenuation to 11 dB
}

void loop() {
    adcValue = analogRead(analogPin);   // Read the analog value
    voltage = (adcValue / 4095.0) * 3.9;  // Calculate voltage
    Serial.print("ADC Value: ");
    Serial.print(adcValue);
    Serial.print(" | Voltage: ");
    Serial.println(voltage);
    delay(1000);  // Wait 1 second before reading again
}

// Include necessary libraries
#include "driver/adc.h"
#include "driver/dma.h"

// Define ADC properties
#define ADC_WIDTH         ADC_WIDTH_BIT_12
#define ADC_ATTEN         ADC_ATTEN_DB_0
#define ADC_CHANNEL       ADC1_CHANNEL_0
#define DMA_BUFFER_SIZE   1024

// DMA buffer for ADC data
uint16_t adc_buffer[DMA_BUFFER_SIZE];

// DMA configuration
void setup_adc_dma() {
    // Configure ADC width and attenuation
    adc1_config_width(ADC_WIDTH);
    adc1_config_channel_atten(ADC_CHANNEL, ADC_ATTEN);

    // Initialize DMA
    dma_config_t dma_config = {
        .src_addr = (void*) ADC1_BASE,
        .dest_addr = adc_buffer,
        .size = DMA_BUFFER_SIZE * sizeof(uint16_t),
        .channel = 0
    };
    dma_init(&dma_config);

    // Start ADC conversion
    adc1_start();
}

void setup() {
    // Initialize serial communication
    Serial.begin(115200);

    // Set up ADC with DMA
    setup_adc_dma();
}

void loop() {
    // Process ADC data
    for (int i = 0; i < DMA_BUFFER_SIZE; i++) {
        Serial.println(adc_buffer[i]);
    }

    // Wait before the next read
    delay(1000);
}


#include <Wire.h>

void setup() {
    Wire.begin();  // Join I2C bus as master
    Serial.begin(115200);
}

void loop() {
    Wire.beginTransmission(0x3C);  // Communicate with device at address 0x3C
    Wire.write(0x00);              // Send data
    Wire.endTransmission();
    delay(1000);
}


#include <Wire.h>

void receiveEvent(int bytes);  // Function to handle data reception
void requestEvent();           // Function to send data when requested

void setup() {
    Wire.begin(0x27);  // Join I2C bus with address 0x27 as a slave
    Wire.onReceive(receiveEvent);  // Register the receive event handler
    Wire.onRequest(requestEvent);  // Register the request event handler
    Serial.begin(115200);
}

void loop() {
    delay(100);  // Main loop does nothing, just waits for events
}

// Function to handle data reception from the master
void receiveEvent(int bytes) {
    while (Wire.available()) {
        char c = Wire.read();  // Read the received byte
        Serial.print(c);       // Print received data
    }
}

// Function to handle data request from the master
void requestEvent() {
    Wire.write("ACK");  // Send back an acknowledgment
}


// Include the I2S driver library
#include <driver/i2s>

// Define I2S configuration parameters
#define I2S_NUM              I2S_NUM_0   // I2S peripheral number
#define I2S_BCK_IO           26          // I2S Bit Clock (BCK) pin
#define I2S_WS_IO            25          // I2S Word Select (WS) pin
#define I2S_DATA_IO          22          // I2S Data pin
#define SAMPLE_RATE          44100       // Audio sample rate
#define I2S_BUFFER_SIZE      1024        // Buffer size for I2S data

void setup() {
    // Configure the I2S driver
    i2s_config_t i2s_config = {
        mode: I2S_MODE_MASTER | I2S_MODE_TX,   // I2S master and transmitter mode
        sample_rate: SAMPLE_RATE,              // Sample rate in Hz
        bits_per_sample: I2S_BITS_PER_SAMPLE_16BIT, // 16-bit audio samples
        channel_format: I2S_CHANNEL_FMT_RIGHT_LEFT, // Stereo audio format
        communication_format: I2S_COMM_FORMAT_I2S_MSB, // I2S format
        dma_buf_count: 2,                     // Number of DMA buffers
        dma_buf_len: I2S_BUFFER_SIZE,         // Length of each DMA buffer
        intr_alloc_flags: ESP_INTR_FLAG_LEVEL1 // Interrupt priority
    };

    // Set up the I2S pins
    i2s_pin_config_t pin_config = {
        bck_io_num: I2S_BCK_IO,    // Bit Clock pin
        ws_io_num: I2S_WS_IO,      // Word Select pin
        data_out_num: I2S_DATA_IO, // Data output pin
        data_in_num: I2S_PIN_NO_CHANGE // No data input pin used
    };

    // Install the I2S driver
    i2s_driver_install(I2S_NUM, &i2s_config, 0, NULL);

    // Set the I2S pin configuration
    i2s_set_pin(I2S_NUM, &pin_config);

    // Prepare data to send
    uint8_t data_to_send[I2S_BUFFER_SIZE] = {0}; // Initialize buffer with zeroes

    // Start sending data
    while (true) {
        i2s_write_bytes(I2S_NUM, (const char *)data_to_send, I2S_BUFFER_SIZE, portMAX_DELAY);
    }
}

void loop() {
    // Nothing to do in the loop
}



// Include the I2S driver library
#include <driver/i2s>

// Define I2S configuration parameters
#define I2S_NUM              I2S_NUM_0   // I2S peripheral number
#define I2S_BCK_IO           26          // I2S Bit Clock (BCK) pin
#define I2S_WS_IO            25          // I2S Word Select (WS) pin
#define I2S_DATA_IO          22          // I2S Data pin
#define SAMPLE_RATE          44100       // Audio sample rate
#define I2S_BUFFER_SIZE      1024        // Buffer size for I2S data

void setup() {
    // Configure the I2S driver
    i2s_config_t i2s_config = {
        mode: I2S_MODE_SLAVE | I2S_MODE_RX,   // I2S slave and receiver mode
        sample_rate: SAMPLE_RATE,              // Sample rate in Hz
        bits_per_sample: I2S_BITS_PER_SAMPLE_16BIT, // 16-bit audio samples
        channel_format: I2S_CHANNEL_FMT_RIGHT_LEFT, // Stereo audio format
        communication_format: I2S_COMM_FORMAT_I2S_MSB, // I2S format
        dma_buf_count: 2,                     // Number of DMA buffers
        dma_buf_len: I2S_BUFFER_SIZE,         // Length of each DMA buffer
        intr_alloc_flags: ESP_INTR_FLAG_LEVEL1 // Interrupt priority
    };

    // Set up the I2S pins
    i2s_pin_config_t pin_config = {
        bck_io_num: I2S_BCK_IO,    // Bit Clock pin
        ws_io_num: I2S_WS_IO,      // Word Select pin
        data_out_num: I2S_PIN_NO_CHANGE, // No data output pin used
        data_in_num: I2S_DATA_IO  // Data input pin
    };

    // Install the I2S driver
    i2s_driver_install(I2S_NUM, &i2s_config, 0, NULL);

    // Set the I2S pin configuration
    i2s_set_pin(I2S_NUM, &pin_config);

    // Buffer to hold received data
    uint8_t received_data[I2S_BUFFER_SIZE];

    // Start receiving data
    while (true) {
        i2s_read_bytes(I2S_NUM, (char *)received_data, I2S_BUFFER_SIZE, portMAX_DELAY);
        // Process received data here
    }
}

void loop() {
    // Nothing to do in the loop
}



// Include the SPI master driver library
#include <driver/spi_master>

// Define GPIO pins for SPI interface
#define SPI_HOST          HSPI_HOST   // Use the HSPI host for communication
#define PIN_MISO           19          // GPIO pin for Master In Slave Out
#define PIN_MOSI           23          // GPIO pin for Master Out Slave In
#define PIN_SCK            18          // GPIO pin for Clock
#define PIN_CS             5           // GPIO pin for Chip Select

void setup() {
    // Initialize the SPI bus
    spi_bus_config_t bus_config = {
        mosi_io_num: PIN_MOSI,  // Set MOSI pin
        miso_io_num: PIN_MISO,  // Set MISO pin
        sclk_io_num: PIN_SCK,   // Set Clock pin
        quadwp_io_num: -1,      // Not used
        quadhd_io_num: -1       // Not used
    };
    // Initialize the SPI bus with the given configuration
    spi_bus_initialize(SPI_HOST, &bus_config, 1);

    // Configure the SPI device
    spi_device_interface_config_t dev_config = {
        command_bits: 0,                // No command bits used
        address_bits: 0,                // No address bits used
        dummy_bits: 0,                  // No dummy bits used
        mode: 0,                        // SPI mode 0
        clock_speed_hz: 1 * 1000 * 1000, // Set SPI clock speed to 1 MHz
        spics_io_num: PIN_CS,           // Set Chip Select pin
        queue_size: 7                   // Number of transactions that can be queued
    };
    spi_device_handle_t spi;
    // Add the SPI device to the bus
    spi_bus_add_device(SPI_HOST, &dev_config, &spi);

    // Prepare data to send
    uint8_t data_to_send[1] = {0xAA};  // Data to be transmitted (e.g., 0xAA)

    // Create and configure the SPI transaction
    spi_transaction_t transaction = {
        length: 8,                // Data length in bits
        tx_buffer: data_to_send,  // Pointer to data to send
        rx_buffer: NULL           // No data expected to be received
    };

    // Perform SPI transaction
    spi_device_transmit(spi, &transaction); // Transmit the data
}

void loop() {
    // Nothing to do in the loop
}



// Include the SPI slave driver library
#include <driver/spi_slave>

// Define GPIO pins for SPI interface
#define SPI_HOST          HSPI_HOST   // Use the HSPI host for communication
#define PIN_MISO           19          // GPIO pin for Master In Slave Out
#define PIN_MOSI           23          // GPIO pin for Master Out Slave In
#define PIN_SCK            18          // GPIO pin for Clock
#define PIN_CS             5           // GPIO pin for Chip Select

void setup() {
    // Initialize the SPI bus
    spi_bus_config_t bus_config = {
        mosi_io_num: PIN_MOSI,  // Set MOSI pin
        miso_io_num: PIN_MISO,  // Set MISO pin
        sclk_io_num: PIN_SCK,   // Set Clock pin
        quadwp_io_num: -1,      // Not used
        quadhd_io_num: -1       // Not used
    };
    // Initialize the SPI bus with the given configuration
    spi_bus_initialize(SPI_HOST, &bus_config, 1);

    // Configure the SPI slave
    spi_slave_interface_config_t dev_config = {
        mode: 0,                  // SPI mode 0
        spics_io_num: PIN_CS,     // Set Chip Select pin
        queue_size: 3,            // Number of transactions that can be queued
        flags: SPI_SLAVE_KEEP_CS_LOW // Keep CS line low during transactions
    };
    // Initialize the SPI slave with the given configuration
    spi_slave_initialize(SPI_HOST, &bus_config, &dev_config, 1);

    // Buffer to hold received data
    uint8_t received_data[1];

    // Create and configure the SPI transaction
    spi_transaction_t transaction = {
        length: 8,               // Data length in bits
        tx_buffer: NULL,         // No data to send
        rx_buffer: received_data // Pointer to buffer for received data
    };

    // Wait for SPI transaction
    spi_slave_transmit(SPI_HOST, &transaction, portMAX_DELAY); // Receive data
}

void loop() {
    // Process received data here
}



// Include the timer library
#include "driver/timer.h"

// Define timer configurations
#define TIMER_DIVIDER         16      // Timer clock divider
#define TIMER_SCALE           (TIMER_BASE_CLK / TIMER_DIVIDER) // Timer scale for microseconds
#define TIMER_INTERVAL_SEC    (1)     // Timer interval in seconds

// Timer interrupt handler
void IRAM_ATTR timer_group0_isr(void* arg) {
    // Clear the interrupt
    timer_spinlock_take(TIMER_GROUP_0);
    TIMERG0.int_clr_timers.t0 = 1;
    timer_group_clr_intr_status_in_isr(TIMER_GROUP_0, TIMER_0);
    timer_spinlock_give(TIMER_GROUP_0);

    // Your interrupt handling code here
    printf("Timer Interrupt Triggered!\n");
}

void setup() {
    // Configure the timer
    timer_config_t config;
    config.alarm_en = TIMER_ALARM_EN;
    config.auto_reload = true;
    config.counter_dir = TIMER_COUNT_UP;
    config.intr_type = TIMER_INTR_LEVEL;
    config.timer_idx = TIMER_0;
    config.counter_en = TIMER_PAUSE;
    config.divider = TIMER_DIVIDER;

    // Initialize timer
    timer_init(TIMER_GROUP_0, TIMER_0, &config);

    // Set the timer alarm value
    timer_set_alarm_value(TIMER_GROUP_0, TIMER_0, TIMER_SCALE * TIMER_INTERVAL_SEC);

    // Enable timer interrupt
    timer_enable_intr(TIMER_GROUP_0, TIMER_0);
    timer_isr_register(TIMER_GROUP_0, TIMER_0, timer_group0_isr, NULL, 0, NULL);

    // Start the timer
    timer_start(TIMER_GROUP_0, TIMER_0);
}

void loop() {
    // Main loop does nothing, timer ISR handles tasks
}



// Include the watchdog library
#include "esp_system.h"
#include "esp_task_wdt.h"

// Define watchdog timer timeout
#define WDT_TIMEOUT_S    10  // Watchdog timeout in seconds

void setup() {
    // Initialize the watchdog timer
    esp_task_wdt_init(WDT_TIMEOUT_S, true); // Enable panic on watchdog timeout

    // Add the current task to the watchdog
    esp_task_wdt_add(NULL); // NULL refers to the current task

    // Start the watchdog timer
    esp_task_wdt_reset();
}

void loop() {
    // Main loop does nothing, watchdog timer needs periodic resets
    while (true) {
        delay(5000); // Delay for 5 seconds
        esp_task_wdt_reset(); // Reset watchdog timer
    }
}



// Include necessary libraries
#include "driver/gpio.h"

// Define GPIO pin for external interrupt
#define INTERRUPT_PIN  4

// ISR for handling the interrupt
void IRAM_ATTR gpio_isr_handler(void* arg) {
    // Handle the interrupt (e.g., toggle an LED)
    gpio_set_level(GPIO_NUM_2, !gpio_get_level(GPIO_NUM_2));
}

void setup() {
    // Initialize the GPIO for the interrupt pin
    gpio_config_t io_conf;
    io_conf.intr_type = GPIO_INTR_NEGEDGE; // Trigger interrupt on falling edge
    io_conf.mode = GPIO_MODE_INPUT;
    io_conf.pin_bit_mask = (1ULL << INTERRUPT_PIN);
    io_conf.pull_down_en = GPIO_PULLDOWN_DISABLE;
    io_conf.pull_up_en = GPIO_PULLUP_ENABLE;
    gpio_config(&io_conf);

    // Initialize the GPIO for the LED (output)
    gpio_set_direction(GPIO_NUM_2, GPIO_MODE_OUTPUT);

    // Install ISR service
    gpio_install_isr_service(0);

    // Attach the ISR to the interrupt pin
    gpio_isr_handler_add(INTERRUPT_PIN, gpio_isr_handler, (void*) INTERRUPT_PIN);
}

void loop() {
    // Main loop does nothing, ISR handles the interrupt
}



// Include necessary libraries
#include "driver/uart.h"

// Define UART properties
#define UART_NUM          UART_NUM_1
#define BUF_SIZE           1024
#define TXD_PIN            (UART_PIN_NO_CHANGE)
#define RXD_PIN            9

// ISR for handling UART interrupts
void IRAM_ATTR uart_isr_handler(void* arg) {
    uint16_t rx_fifo_len;
    uart_get_buffered_data_len(UART_NUM, &rx_fifo_len);

    // Handle UART data reception
    uint8_t data[BUF_SIZE];
    int length = uart_read_bytes(UART_NUM, data, rx_fifo_len, 100 / portTICK_RATE_MS);
    // Process received data
}

void setup() {
    // Initialize UART
    uart_config_t uart_config = {
        .baud_rate = 115200,
        .data_bits = UART_DATA_BITS_8,
        .parity = UART_PARITY_DISABLE,
        .stop_bits = UART_STOP_BITS_1,
        .flow_ctrl = UART_HW_FLOWCTRL_DISABLE
    };
    uart_param_config(UART_NUM, &uart_config);
    uart_set_pin(UART_NUM, TXD_PIN, RXD_PIN, UART_PIN_NO_CHANGE, UART_PIN_NO_CHANGE);
    uart_driver_install(UART_NUM, BUF_SIZE * 2, 0, 0, NULL, 0);

    // Install UART ISR
    uart_isr_register(UART_NUM, uart_isr_handler, NULL, 0, NULL);
}

void loop() {
    // Main loop does nothing, UART ISR handles interrupts
}



// Include necessary libraries
#include "driver/i2c.h"

// Define I2C properties
#define I2C_MASTER_NUM     I2C_NUM_0
#define I2C_SDA_IO         21
#define I2C_SCL_IO         22
#define I2C_FREQ_HZ        100000

// ISR for handling I2C interrupts
void IRAM_ATTR i2c_isr_handler(void* arg) {
    // Handle I2C events (not directly supported by I2C driver)
}

void setup() {
    // Initialize I2C
    i2c_config_t conf;
    conf.mode = I2C_MODE_MASTER;
    conf.sda_io_num = I2C_SDA_IO;
    conf.sda_pullup_en = GPIO_PULLUP_ENABLE;
    conf.scl_io_num = I2C_SCL_IO;
    conf.scl_pullup_en = GPIO_PULLUP_ENABLE;
    conf.master.clk_speed = I2C_FREQ_HZ;
    i2c_param_config(I2C_MASTER_NUM, &conf);
    i2c_driver_install(I2C_MASTER_NUM, conf.mode, 0, 0, 0);
}

void loop() {
    // Main loop does nothing, I2C ISR would handle events if supported
}



// Include necessary libraries
#include "driver/spi_master.h"

// Define SPI properties
#define SPI_HOST          HSPI_HOST
#define DMA_CHANNEL       1

// ISR for handling SPI interrupts
void IRAM_ATTR spi_isr_handler(void* arg) {
    // Handle SPI events (not directly supported by SPI driver)
}

void setup() {
    // Initialize SPI
    spi_bus_config_t buscfg = {
        .miso_io_num = -1,
        .mosi_io_num = 23,
        .sclk_io_num = 18,
        .quadwp_io_num = -1,
        .quadhd_io_num = -1
    };
    spi_bus_initialize(SPI_HOST, &buscfg, DMA_CHANNEL);

    spi_device_interface_config_t devcfg = {
        .clock_speed_hz = 1000000,
        .mode = 0,
        .spics_io_num = 5,
        .queue_size = 1,
    };
    spi_device_handle_t spi;
    spi_bus_add_device(SPI_HOST, &devcfg, &spi);
}

void loop() {
    // Main loop does nothing, SPI ISR would handle events if supported
}



// Include necessary libraries
#include "driver/i2s.h"

// Define I2S properties
#define I2S_NUM           I2S_NUM_0
#define I2S_BCK_IO        26
#define I2S_WS_IO         25
#define I2S_DO_IO         22

// ISR for handling I2S interrupts
void IRAM_ATTR i2s_isr_handler(void* arg) {
    // Handle I2S events (not directly supported by I2S driver)
}

void setup() {
    // Initialize I2S
    i2s_config_t i2s_config = {
        .mode = I2S_MODE_MASTER | I2S_MODE_TX,
        .sample_rate = 44100,
        .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,
        .channel_format = I2S_CHANNEL_FMT_RIGHT_LEFT,
        .communication_format = I2S_COMM_FORMAT_I2S_MSB,
        .intr_alloc_flags = ESP_INTR_FLAG_IRAM,
        .dma_buf_count = 8,
        .dma_buf_len = 64
    };
    i2s_driver_install(I2S_NUM, &i2s_config, 0, NULL);

    i2s_pin_config_t pin_config = {
        .bck_io_num = I2S_BCK_IO,
        .ws_io_num = I2S_WS_IO,
        .data_out_num = I2S_DO_IO,
        .data_in_num = I2S_PIN_NO_CHANGE
    };
    i2s_set_pin(I2S_NUM, &pin_config);
}

void loop() {
    // Main loop does nothing, I2S ISR would handle events if supported
}



// Include necessary libraries
#include "driver/adc.h"

// ISR for handling ADC interrupts
void IRAM_ATTR adc_isr_handler(void* arg) {
    // Handle ADC conversion complete event
    int adc_value = adc1_get_raw(ADC1_CHANNEL_0);
    printf("ADC Value: %d\n", adc_value);
}

void setup() {
    // Initialize ADC
    adc1_config_width(ADC_WIDTH_BIT_12);
    adc1_config_channel_atten(ADC1_CHANNEL_0, ADC_ATTEN_DB_0);

    // ADC interrupt setup
    adc1_add_sample(ADC1_CHANNEL_0);
}

void loop() {
    // Main loop does nothing, ADC ISR handles interrupts
}



// Include necessary libraries
#include "driver/timer.h"

// Define timer properties
#define TIMER_DIVIDER         16      // Timer clock divider
#define TIMER_SCALE           (TIMER_BASE_CLK / TIMER_DIVIDER) // Timer scale for microseconds
#define TIMER_INTERVAL_SEC    (1)     // Timer interval in seconds

// ISR for handling the timer interrupt
void IRAM_ATTR timer_group0_isr(void* arg) {
    // Clear the interrupt
    timer_spinlock_take(TIMER_GROUP_0);
    TIMERG0.int_clr_timers.t0 = 1;
    timer_group_clr_intr_status_in_isr(TIMER_GROUP_0, TIMER_0);
    timer_spinlock_give(TIMER_GROUP_0);

    // Your interrupt handling code here
    printf("Timer Interrupt Triggered!\n");
}

void setup() {
    // Configure the timer
    timer_config_t config;
    config.alarm_en = TIMER_ALARM_EN;
    config.auto_reload = true;
    config.counter_dir = TIMER_COUNT_UP;
    config.intr_type = TIMER_INTR_LEVEL;
    config.timer_idx = TIMER_0;
    config.counter_en = TIMER_PAUSE;
    config.divider = TIMER_DIVIDER;

    // Initialize timer
    timer_init(TIMER_GROUP_0, TIMER_0, &config);

    // Set the timer alarm value
    timer_set_alarm_value(TIMER_GROUP_0, TIMER_0, TIMER_SCALE * TIMER_INTERVAL_SEC);

    // Enable timer interrupt
    timer_enable_intr(TIMER_GROUP_0, TIMER_0);
    timer_isr_register(TIMER_GROUP_0, TIMER_0, timer_group0_isr, NULL, 0, NULL);

    // Start the timer
    timer_start(TIMER_GROUP_0, TIMER_0);
}

void loop() {
    // Main loop does nothing, timer ISR handles tasks
}




#include "driver/rtc_io.h"
#include "esp_sleep.h"

void setup() {
    Serial.begin(115200);
    esp_sleep_enable_timer_wakeup(10 * 1000000); // Set wakeup timer for 10 seconds
    Serial.println("Going to sleep now...");
    esp_deep_sleep_start();  // Enter deep sleep mode
}

void loop() {
    // Code will only run after waking up from deep sleep
    if (esp_sleep_get_wakeup_cause() == ESP_SLEEP_WAKEUP_TIMER) {
        Serial.println("Woke up from RTC Timer interrupt!");
    }
    delay(1000);
}





#include "BluetoothSerial.h"

BluetoothSerial SerialBT;

void btCallback(esp_spp_cb_event_t event, esp_spp_cb_param_t *param) {
    if (event == ESP_SPP_SRV_OPEN_EVT) {
        Serial.println("Bluetooth Connected!");
    }
}

void setup() {
    Serial.begin(115200);
    SerialBT.register_callback(btCallback);
    SerialBT.begin("ESP32_Test"); // Device name
    Serial.println("Waiting for Bluetooth connection...");
}

void loop() {
    if (SerialBT.available()) {
        Serial.println("Received data via Bluetooth.");
    }
}





#include <WiFi.h>

void WiFiEvent(WiFiEvent_t event) {
    switch (event) {
        case SYSTEM_EVENT_STA_GOT_IP:
            Serial.println("WiFi Connected, IP Address Obtained");
            break;
        case SYSTEM_EVENT_STA_DISCONNECTED:
            Serial.println("WiFi Disconnected");
            break;
    }
}

void setup() {
    Serial.begin(115200);
    WiFi.onEvent(WiFiEvent);  // Register WiFi event handler
    WiFi.begin("YourSSID", "YourPassword");

    Serial.println("Connecting to WiFi...");
}

void loop() {
    // Regular loop code
}





// Example code to configure ESP32 RTC

#include "esp_sleep.h"
#include "time.h"

void setup() {
  Serial.begin(115200);

  // Set time struct
  struct tm timeinfo;
  if (!getLocalTime(&timeinfo)) {
    Serial.println("Failed to obtain time");
    return;
  }

  // Configure RTC to wake up from deep sleep
  esp_sleep_enable_timer_wakeup(10 * 1000000); // Wake up after 10 seconds
  Serial.println("Going to sleep now");
  esp_deep_sleep_start();
}

void loop() {
  // The loop won't be executed due to deep sleep
}


#include "esp32/ulp.h"
#include "esp_sleep.h"
#include "driver/adc.h"
#include "esp_log.h"

// Threshold for sensor value to wake up ESP32
#define THRESHOLD 1000

// ULP program declaration
extern const uint8_t ulp_bin_start[] asm("_binary_ulp_program_bin_start");
extern const uint8_t ulp_bin_end[] asm("_binary_ulp_program_bin_end");

void setup() {
    // Initialize serial monitor
    Serial.begin(115200);
    delay(1000);

    // Initialize ULP and load ULP program
    initULP();

    // Go to deep sleep with ULP wakeup enabled
    esp_sleep_enable_ulp_wakeup();
    esp_deep_sleep_start();
}

void loop() {
    // The loop should never run, as the ESP32 is in deep sleep.
}

void initULP() {
    // Load ULP binary program into ULP memory
    size_t ulp_size = ulp_bin_end - ulp_bin_start;
    ulp_load_binary(0, ulp_bin_start, ulp_size);

    // Initialize ADC channel (example: ADC1, Channel 6 / GPIO34)
    adc1_config_width(ADC_WIDTH_BIT_12);
    adc1_config_channel_atten(ADC1_CHANNEL_6, ADC_ATTEN_DB_11);

    // Set ULP wakeup period to 1 second (1000 ms)
    ulp_set_wakeup_period(0, 1000 * 1000);  // 1 second

    // Start the ULP program
    ulp_run((&ulp_entry - RTC_SLOW_MEM) / sizeof(uint32_t));
}


 /*  author: Peter Dunne, peterjazenga@gmail.com
 *  Web interface to Configure WiFi interface
 *  Bluetooth (ESP32 only) control and Configuration interface to phones/tablets/etc.

 *  sysConfig.init(); is called after Serial.begin(); and it handles all WiFi, OTA, NAT, Time setting and Bluetooth configuration
 *  WPS is also supported via sysConfig
 *  sysConfig.run(); keeps things updated, provides for servicing of the OTA & Web server issues among others, it also handles the blinking of the status LED
 */

#include "sysconfig32.h";

void setup() {
  Serial.begin(115200);
  sysConfig.init();
  Serial.println("Ready.");
 }

void loop() {
  sysConfig.run();
}



#include <Wifi.h>

const char* ssid = "your_SSID";
const char* password = "your_PASSWORD";

void setup() {
    Serial.begin(115200);
    WiFi.begin(ssid, password);

    while (WiFi.status() != WL_CONNECTED) {
        delay(1000);
        Serial.println("Connecting to WiFi...");
    }
    Serial.println("Connected to WiFi");
}

void loop() {
    // Code for internet communication here
}





#include <Wifi.h>

const char* ssid = "ESP32_AP";
const char* password = "12345678";

void setup() {
    Serial.begin(115200);
    WiFi.softAP(ssid, password);
    Serial.println("ESP32 Access Point is ready");
}

void loop() {
    // Code for server-side or data handling here
}



#include <Arduino.h>

// Pin for LED
#define LED_PIN 2

// Handles for tasks
TaskHandle_t Task1;
TaskHandle_t Task2;

// Function for Task1 (running on Core 0)
void Task1code( void * pvParameters ) {
    Serial.print("Task1 running on core ");
    Serial.println(xPortGetCoreID());

    for(;;) {
        digitalWrite(LED_PIN, HIGH);
        delay(500);
        digitalWrite(LED_PIN, LOW);
        delay(500);
    }
}

// Function for Task2 (running on Core 1)
void Task2code( void * pvParameters ) {
    Serial.print("Task2 running on core ");
    Serial.println(xPortGetCoreID());

    for(;;) {
        Serial.println("Task2 is running");
        delay(1000);
    }
}

void setup() {
    // Initialize Serial Monitor
    Serial.begin(115200);
    delay(1000);

    // Configure LED pin as output
    pinMode(LED_PIN, OUTPUT);

    // Create Task1 on Core 0
    xTaskCreatePinnedToCore(
        Task1code,   // Task function
        "Task1",     // Task name
        10000,       // Stack size
        NULL,        // Task parameters
        1,           // Task priority
        &Task1,      // Task handle
        0            // Core to run on (Core 0)
    );

    // Create Task2 on Core 1
    xTaskCreatePinnedToCore(
        Task2code,   // Task function
        "Task2",     // Task name
        10000,       // Stack size
        NULL,        // Task parameters
        1,           // Task priority
        &Task2,      // Task handle
        1            // Core to run on (Core 1)
    );
}

void loop() {
    // Nothing to do in loop, tasks are handled by FreeRTOS
}



// Example code for ESP32 BLE

#include <BLEDevice>
#include <BLEServer>
#include <BLEUtils>
#include <BLE2902>

BLEServer* pServer = NULL;
BLECharacteristic* pCharacteristic = NULL;
bool deviceConnected = false;

// UUIDs for BLE Service and Characteristic
#define SERVICE_UUID        "0000180A-0000-1000-8000-00805F9B34FB"
#define CHARACTERISTIC_UUID "00002A29-0000-1000-8000-00805F9B34FB"

void setup() {
  Serial.begin(115200);
  BLEDevice::init("ESP32_Bluetooth");

  // Create BLE Server
  pServer = BLEDevice::createServer();

  // Create BLE Service
  BLEService *pService = pServer->createService(SERVICE_UUID);

  // Create BLE Characteristic
  pCharacteristic = pService->createCharacteristic(
          CHARACTERISTIC_UUID,
                      BLECharacteristic::PROPERTY_READ |
                      BLECharacteristic::PROPERTY_WRITE
                    );

  // Start the service
 pService->start();

  // Start advertising
  pServer->getAdvertising()->start();
  Serial.println("Waiting for a client to connect...");
}

void loop() {
  // If a device connects
  if (pServer->getConnectedCount() > 0 && !deviceConnected) {
    deviceConnected = true;
    Serial.println("Device connected");
  }

  // If a device disconnects
  if (pServer->getConnectedCount() == 0 && deviceConnected) {
    deviceConnected = false;
    Serial.println("Device disconnected");
  }

  delay(1000); // Wait for 1 second
}
